Automate Your Lab - Part 4 - AD OUs, Groups And Users

Table of Contents

Automate Your Lab - This article is part of a series.

Part 1: Automate Your Lab - Part 1 - The Domain

Part 2: Automate Your Lab - Part 2 - DNS

Part 3: Automate Your Lab - Part 3 - DHCP

Part 4: This Article

Part 5: Automate Your Lab - Part 5 - Certificate Authority

Part 6: Automate Your Lab - Part 6 - WSUS

Part 7: Automate Your Lab - Part 7 - Central GPO Store

Part 8: Automate Your Lab - Part 8 - SQL Server

Part 9: Automate Your Lab - Part 9 - MDT With Chocolatey Integration

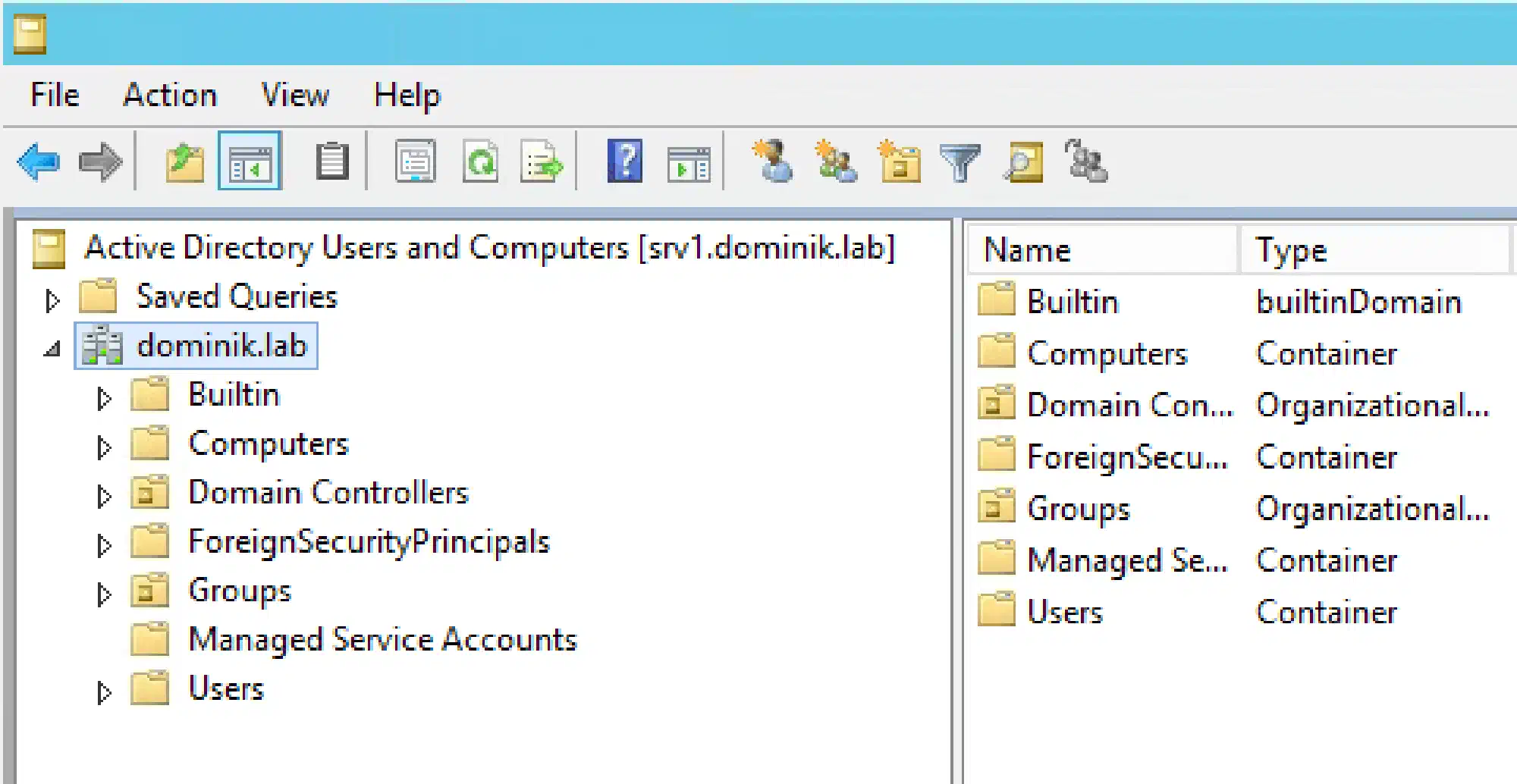

After you created all your infrastructure services like AD, DNS and DHCP in this part of the series we are going to add “life” to your Active Directory. At the moment you have an empty AD like this:

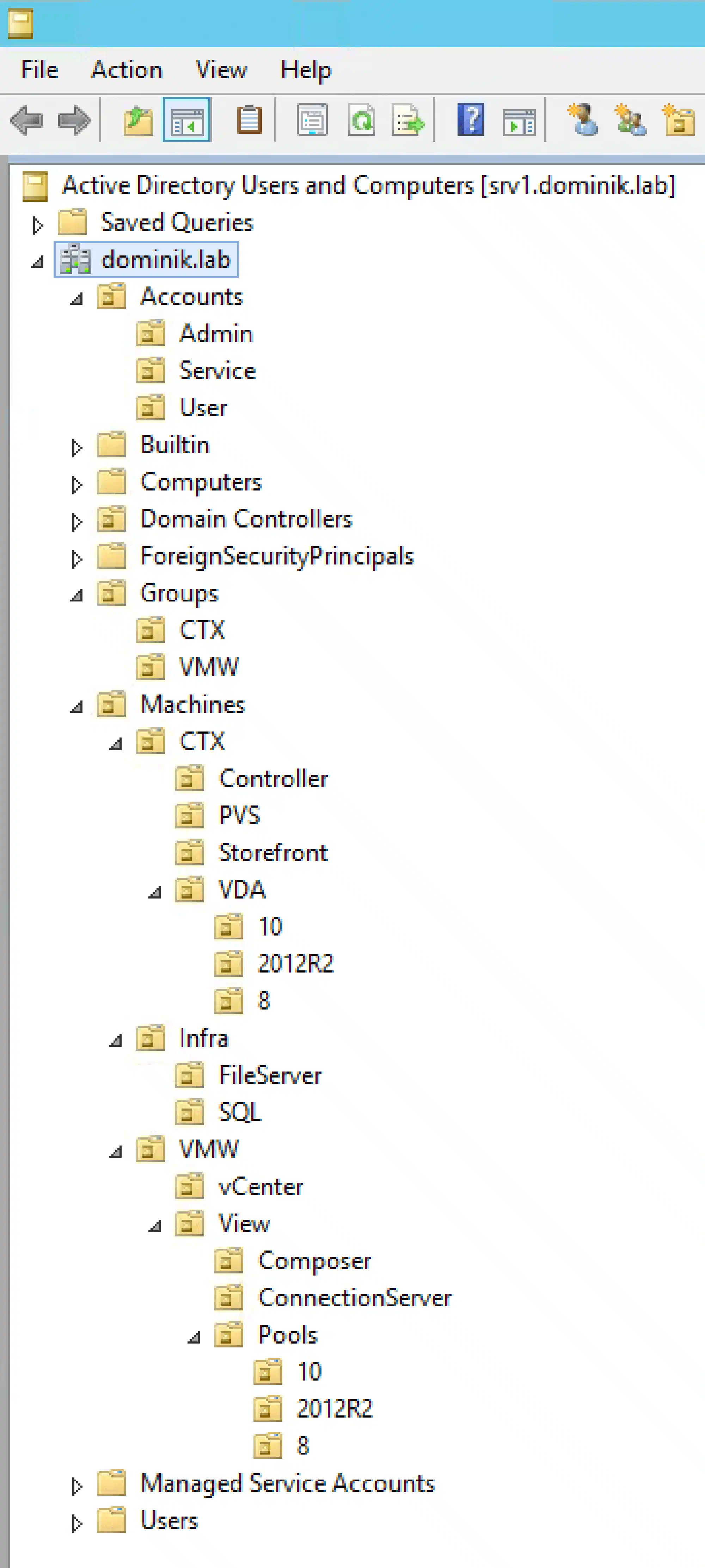

After running the script it will look like this:

You can customize the structure of your AD with csv files. There are csv files for OUs, groups and users.

You can find my standard set of csv files at the end of the article. Feel free to customize them according to your needs. My csv files are optimized for an English OS!

You can call the script from the command line, e.g.

.\Install-LabADObjects.ps1 -Domain 'DC=dominik,DC=lab' -PathToOUsCSV .\OUs.csv -PathToGroupsCSV .\Groups.csv -PathToUsersCSV .\Users.csv

Or you can edit the variables (path to the csv files etc.) in the script directly.

Creating OUs
#

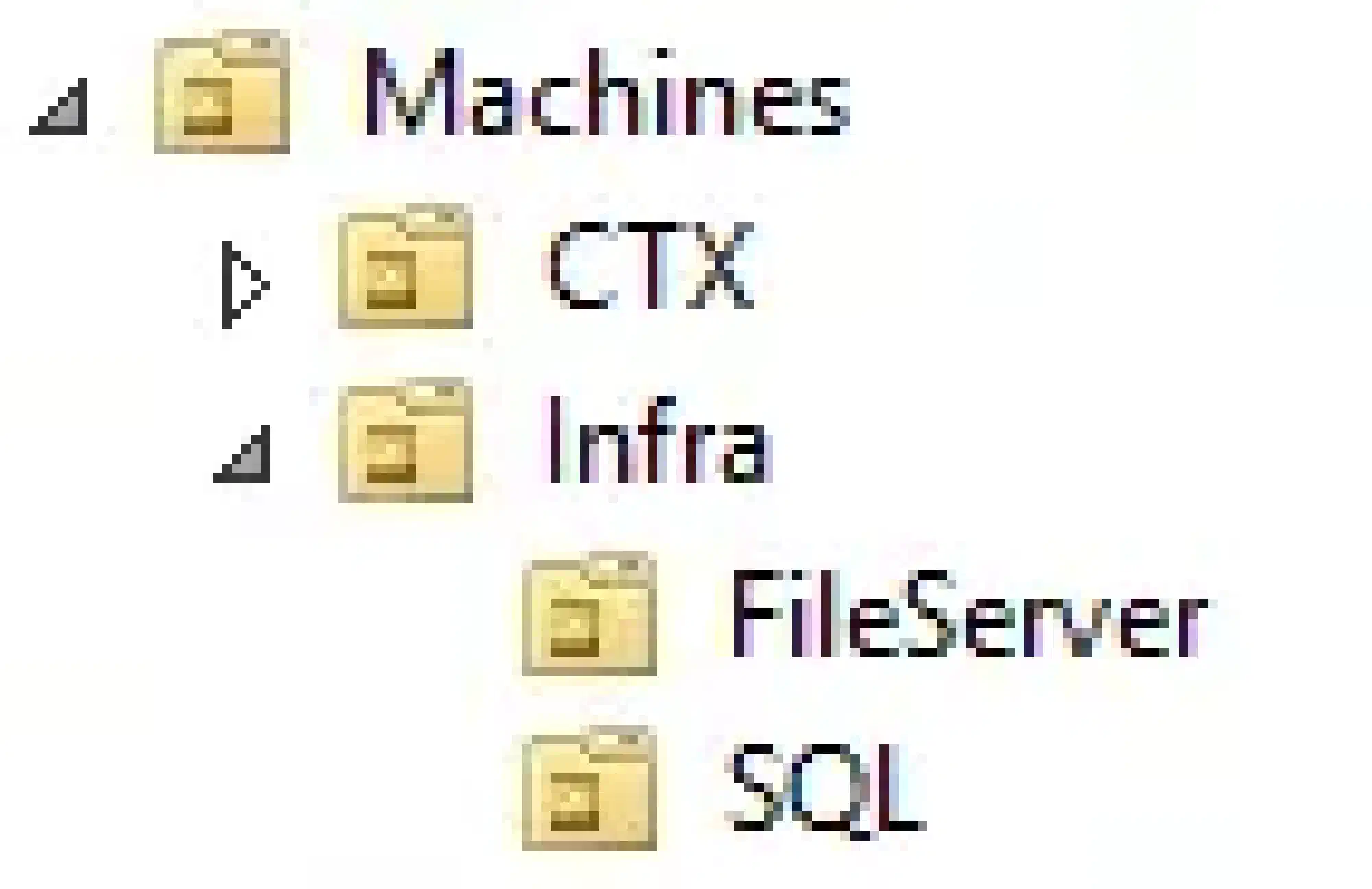

For creating OUs you just need to enter the names for the OUs - you must not use the LDAP syntax. It’s much easier to read. As the PowerShell cmdlet New-ADOrganizationalUnit does not support creation of OUs recursively, you have to ensure that all parent OUs already exist. To accomplish that just start with the parent OU in the csv and then specify the child OUs. E.g. if you want to create the OU SQL in the path Machines/Infra this is what the csv would look like:

Machines
Machines;Infra
Machines;Infra;SQL

Creating Groups
#

The following fields are available in the csv:

Name [Name of the group]
Category [Security or Distribution]
Scope [DomainLocal, Global or Universal]
Path [LDAP path to an OU; variables will be expanded]

E.g. if you want to create the global security group CtxAdmins in the OU Groups/CTX the csv file would be the following:

Name;Category;Scope;Path
CtxAdmins;Security;Global;OU=CTX,OU=Groups,$Domain

The variable $Domain is specified in the script or as a parameter on the command line.

Creating Users
#

Basically the same as creating groups. The following fields are available:

Name [Name of the user]
Path [LDAP path to an OU; variables will be expanded]
MemberOf [DisplayName of an AD group the user will get member of. “Domain Users” is default.]

The Script
#

Install-LabADObjects.ps1:

<#
     .SYNOPSIS
     This script will set up OUs, groups and users in your domain. The configuration is stored in csv files.

     .NOTES
     You need a Windows Server 2012 R2 for this script to work.
     This script is part of a series to automate your lab on www.dominikbritz.com
#>


#Requires -Version 3
#Requires -RunAsAdministrator


#region Variables
PARAM
(
    $Domain = 'DC=dominik,DC=lab',
    $PathToOUsCSV = ".\OUs.csv",
    $PathToGroupsCSV = ".\Groups.csv",
    $PathToUsersCSV = ".\Users.csv",
    $OUProtected = $False,
    $UserPassword = (Read-Host 'Enter the password for you user accounts' -AsSecureString)
)
#endregion


#region Script
Write-Output 'Processing OUs'
$OUs = Get-Content -Path $PathToOUsCSV
Foreach ($OU in $OUs) {
    $OUPath = $null
    If ($OU -notmatch ';')
    {
        $OUName = $OU
        $OUPath = $Domain
    }
    Else
    {
        $reverse = $OU.split(';')
        [array]::Reverse($reverse)
        $OUName = $reverse[0]
        $reverse = $reverse[1 .. $reverse.Length]
        Foreach ($item in $reverse) {
        $OU = 'OU=' + $item + ','
        $OUPath += $OU
        }
        $OUPath = $OUPath + $Domain
    }
    New-ADOrganizationalUnit -Name $OUName -Path $OUPath -ProtectedFromAccidentalDeletion $OUProtected -Verbose
}


Write-Output 'Processing Groups'
$Groups = Import-CSV -Path $PathToGroupsCSV -Delimiter ';'
Foreach ($Group in $Groups) {
    $Path = $ExecutionContext.InvokeCommand.ExpandString($Group.Path)
    New-ADGroup -Name $Group.Name -GroupCategory $Group.Category -GroupScope $Group.Scope -Path $Path -Verbose
}


Write-Output 'Processing Users'
$Users = Import-Csv -Path $PathToUsersCSV -Delimiter ';'
Foreach ($User in $Users) {
    $Path = $ExecutionContext.InvokeCommand.ExpandString($User.Path)
    New-ADUser -Name $User.Name -Path $Path -Enabled $true -CannotChangePassword $true -ChangePasswordAtLogon $False -PasswordNeverExpires $true -AccountPassword $UserPassword -Verbose

    If ($User.MemberOf)
    {
        Add-ADGroupMember -Identity $User.MemberOf -Members $User.Name
    }
}
#endregion

My Standard Set Of CSV Files
#

The original download attachment of this article was lost when I migrated my blog. The csv files below are reconstructed from the AD structure shown in the screenshot above and from the examples in this article.

OUs.csv:

Accounts
Accounts;Admin
Accounts;Service
Accounts;User
Groups
Groups;CTX
Groups;VMW
Machines
Machines;CTX
Machines;CTX;Controller
Machines;CTX;PVS
Machines;CTX;Storefront
Machines;CTX;VDA
Machines;CTX;VDA;8
Machines;CTX;VDA;10
Machines;CTX;VDA;2012R2
Machines;Infra
Machines;Infra;FileServer
Machines;Infra;SQL
Machines;VMW
Machines;VMW;vCenter
Machines;VMW;View
Machines;VMW;View;Composer
Machines;VMW;View;ConnectionServer
Machines;VMW;View;Pools
Machines;VMW;View;Pools;8
Machines;VMW;View;Pools;10
Machines;VMW;View;Pools;2012R2

Groups.csv:

Name;Category;Scope;Path
CtxAdmins;Security;Global;OU=CTX,OU=Groups,$Domain
CtxUsers;Security;Global;OU=CTX,OU=Groups,$Domain
VmwAdmins;Security;Global;OU=VMW,OU=Groups,$Domain
VmwUsers;Security;Global;OU=VMW,OU=Groups,$Domain

Users.csv:

Name;Path;MemberOf
ctxadmin;OU=Admin,OU=Accounts,$Domain;CtxAdmins
vmwadmin;OU=Admin,OU=Accounts,$Domain;VmwAdmins
svc_ctx;OU=Service,OU=Accounts,$Domain;
svc_vmw;OU=Service,OU=Accounts,$Domain;
user1;OU=User,OU=Accounts,$Domain;CtxUsers
user2;OU=User,OU=Accounts,$Domain;VmwUsers
